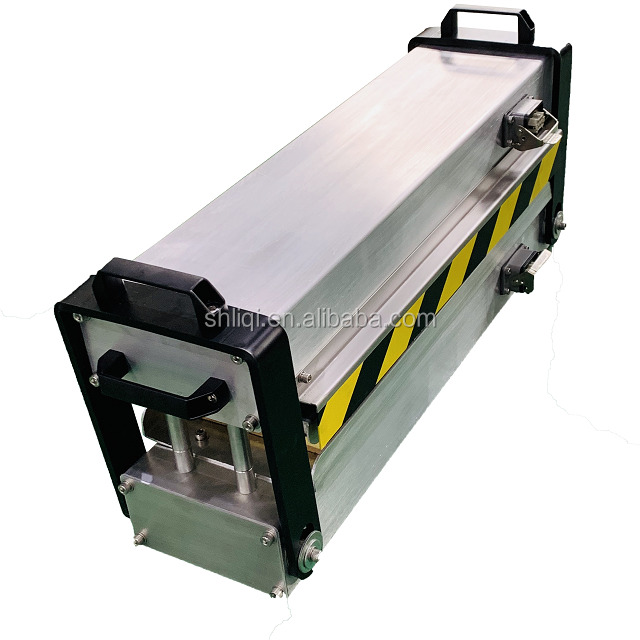

Heating platen, heating area, width 200mm (if need 200mm, we have another type press)
Different size for belt width from 600mm upto 3000mm (wider than 1500mm, we use Aluminum body)
Used for PVC belt, Polyurethane belt (PU belt) and Polyester Monofilament synthetic belting
Air bag (pressure bags)
Air pressure
Laser silica gel hot platen
Easy to use and assemble
Light weight
Rapid Cooling system within platens
Heating to 180℃,about 15~20 mins;180℃ cooling down to 60℃ about 3~5mins (accords to different size press), temperature error(on 650mm Up and bottom hot plate )is less than 3℃.
Air pressure: 0~0.3 mpa
Reliable and automatic Temperature Control Panel with time control.
Water cooling pump
With steel structure
Voltage: 220V or 380V, if special voltage pls freely to inform us.
If the press is required for workshop use, Opening system & steel housing is Optional.
Tool Specification | 500 | 1000 |
1600 | 2000 | 3000 |
Effective length(mm) | 525 | 1230 | 1740 | 2230 | 3240 |
Effective width (mm) | 200 | 200 | 2oo | 200 | 200 |
Weight(upper platen,kg) | 18 | 40 | 65 | 79 | 120 |
Max pressure(Bar) | 1.5 | 1.7 | 2 | 3 | 4.5 |
Machine height(mm) | 230 | 230 | 230 | 230 | 230 |
Machine width(mm) | 240 | 240 | 240 | 240 | 240 |
Power(kw) | 3.2 | 4.5 | 7 | 9 | 12 |
Max temperature(℃) | 200 | 200 | 200 | 200 | 200 |
C E
We are professional manufacturer industrial belts, including PVC/PU conveyor belts, timing belts, and other special belts, which are wildly applied in various fields, such as ceramic marble production lines, foods industry, logistic industry and other industries.
2. What terms do our company use in our international trade?
We usually do business in FOB Guangzhou or FOB foshan. But if you have special requirement, we can also do in your convenience.
3. when is the lead time of each order?
Usually we can finish a order in 15 days, but it can vary according to the quantity of your order.
4. Where is our company?
The headquarter of our company is located in Foshan. We have several factories in different places, mostly in foshan, some in other provinces.
5. Can we provide samples?
Yes. Samples are free offered.
6. Are our belts standard or nonstandard? Can we product in your special requirements.
Most of our belts are nonstandard and of course we can produce in your requirements. For those standard products, there are also several options in different sizes for your choice. For conveyor belts, you can chose your sizes of different width, length and also thickness. For timing belts, not only you can decide on the size, but you can ask to add some special material, such cloth or rubber onto the belts.
